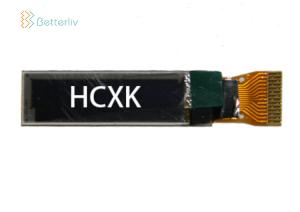

0.69 Inch I2c Small OLED Display Module Passive Matrix 14pin / 28pin

Name: 069 Inch I2c Small OLED Display Module Passive Matrix 14pin 28pin
Brand: Betterliv/OEM
Price: 1 USD

Best 0.69 Inch I2c Small OLED Display Module Passive Matrix 14pin / 28pin wholesale

Brand Name : Betterliv/OEM

Model Number : HCQ9616WW14S01

Place of Origin : Shenzhen,China

Payment Terms : T/T, Western Union, Credit Card

Production Size : 0.69 inch

Pins : 14pin/28pin

Color : White/Blue

Number of Pixels : 96x16

Driving Method : Passive Matrix

Panel Size : 26.3x8x1.2mm

Active Area : 17.26x3.18mm

Duty : 1/16

Interface : I2C

Fame Rate : 140 Frames/Sec

Contact Now

0.69 Inch Small OLED Display Module PM 96x16 Dot 2.6-3.5 V IIC Interface OLED Screen

Product Description

We are professional manufacturer of OLED Parts in China,We had more than 8 years in this field.Providing high quality production.A leading innovator of PM OLED technology,Welcome to visit our factory.

High contrast ratio ratio (10000:1)
Free viewing angle >160°
Fast response time <10μS
Thinner & lighter & durable
Wide operation temperature (-40℃ ~85℃)
No need of backlight,self emitting
Apply to most products from any area.

Products model	Color (Difference)
HCQ9616WW14S01	White (14Pin) @DC/DC
HCQ9616BB14S01	Blue (14Pin) @DC/DC
HCQ9616WW08S01	White (8Pin)@VCC
HCQ9616BB08S01	Blue (8Pin) @VCC

Diagonal Screen Size	0.69"
Number of Pixels	96*16
Color Depth	Monochrome:White/Blue
Module Construction	COG
Panel Size(mm)	26.3 × 8.0 × 1.2
Active Area (mm)	17.26 × 3.18
Pixel Pitch (mm)	0.18 × 0.2
Pixel Size (mm)	0.16 × 0.18
Duty	1/16
VCI (V)	2.6~3.5
Vbat DC/DC (V)	3.5~4.2
VCC (V)	7.25
Driver IC	SSD1306
Brightness(cd/m2)	120(min)
Interface	I2C
Assembly	Soldering

Application

0.69 Inch I2c Small OLED Display Module Passive Matrix 14pin / 28pin
